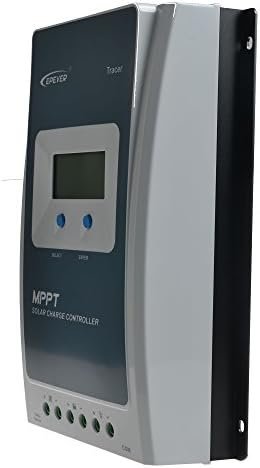

EPEVER 40A MPPT Solar Charge Controller 100V Input Tracer 4210AN with Display

Product description

Technical Data:

Model: Tracer4210AN G3

Nominal system voltage:12/24VDC auto work

Rated charge current:40A

Rated discharge current: 40A

Battery input voltage range: 8-32V

Max. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)

MPP voltage range:V(BAT)+2V～72V

Max. PV input power:520W(12V Battery) & 1040W(24V battery)

Power terminals:#6 AWG(16mm2)

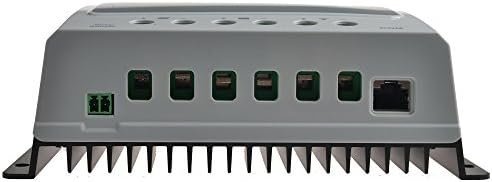

Connectors for Tracer AN series MPPT

Temperature Sensor ConnectorSolar Panel, Battery, Load ConnectorRS485 Connector Detect environment temperature to serve a better charging performance Accept max #6AWG wire RJ45 RS485 Connector used for connecting MT50 Meter or RS485 Cable for PC monitor or eBox

Product Feature

MPPT tracking efficiency above 99.5% Maximum charge conversion efficiency as high as 98% Support lead-acid and lithium-ion batteries Multiple load work modes Charging power and current limitation High-temperature charging power derating function Standard Modbus communication protocol with RS485 interface Real-time energy statistics
Negative Grounding Design make it applicable for vehicles Max 100V PV Input , 4 x 12V solar panel can be connected in series Work with LiFePO4 Lithium Battery And Lead Acid Battery Battery type can be set via controller’s button, no need extra device to set the controller New updated version G3 make it more easy to set and stable for operating

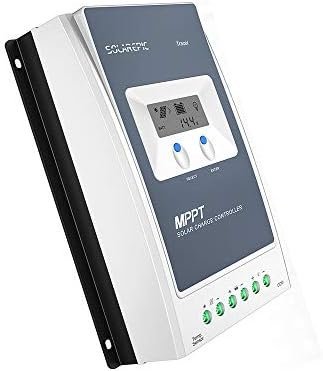

Tracer 4210AN MPPT Charge Controller Introduction

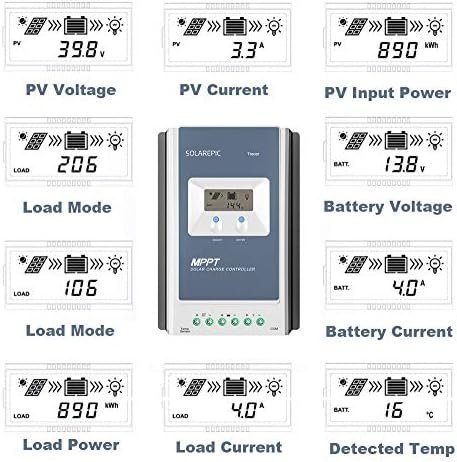

SELECT button Remote Temperature Sensor(RTS) Interface PV Terminals Battery Terminals Load Terminals Mounting Hole Φ5mm RS485 communication interface ENTER button LCD Display

Grounding
Negative Ground Negative Ground Negative Ground Positive Ground Negative Ground

Upper Case Material
Plastic Plastic Metal Plastic Plastic

Battery Type
Sealed, Gel and Flooded, User and Lithium Sealed, Gel and Flooded, User and Lithium Sealed, Gel and Flooded, User Sealed, Gel and Flooded, User and Lithium Sealed, AGM, GEL, Flooded, Custom and Lithium

Rated Charge Power
520W@12V / 1040W@24V 520W@12V / 1040W@24V 520W@12V / 1040W@24V 550W@12V / 1100W@24V – no data

Max. PV Array Power
780W@12V/1560W@24V(12V or 24V refers to battery voltage) 780W@12V/1560W@24V(12V or 24V refers to battery voltage) 780W@12V/1560W@24V(12V or 24V refers to battery voltage) – no data
840W@12V / 1680W@24V

Max. PV wire size
16mm2/6AWG 16mm2/6AWG 16mm2/6AWG 10mm2/8AWG 25mm2/3AWG

EPEVER Tracer 4210AN Series Negative Ground and compatible with Lithium(LiFePO4) Battery Charging.
Compatible with 12V or 24V battery system. High tracking efficiency up to 99%
Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode.
Die-cast aluminum design and nature cooling
Four battery type options:Sealed, Gel, Flooded, and USER define
