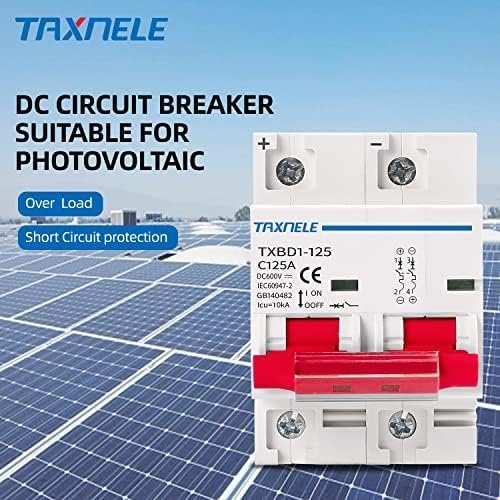

DC MCB Miniature Circuit Breaker 2P 80A 100A 125A 600V Solar Mini Circuit

Product description

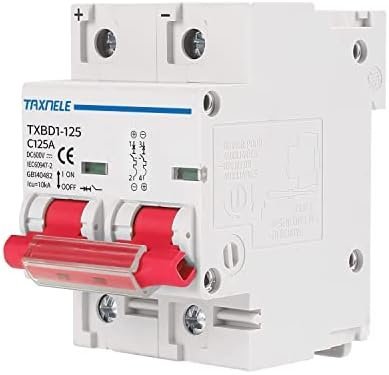

TXBD1-125

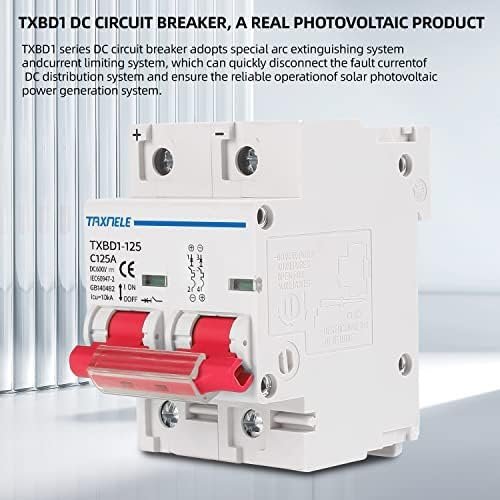

TXBD1 series DC circuit breaker adopts special arc extinguishing system and current limiting system, which can quickly disconnect the fault current of DC distribution system and ensure the reliable operation of solar photovoltaic power generation system.

Function: Over Load protection Short Circuit protection

Specification:

Item Type: DC Miniature Circuit BreakerRated current: 80A 100A 125ARated voltage: DC12-600VUses: solar photovoltaic energy, electric motorcycle, electric car Package list:

1 Miniature DC Circuit Breaker

35MM STANDARD DIN RAIL INSTALLATION

Install the 35mm DIN rail horizontally in a stable environment.

THE BACK OF THE DISPLAY

Fixed buckle

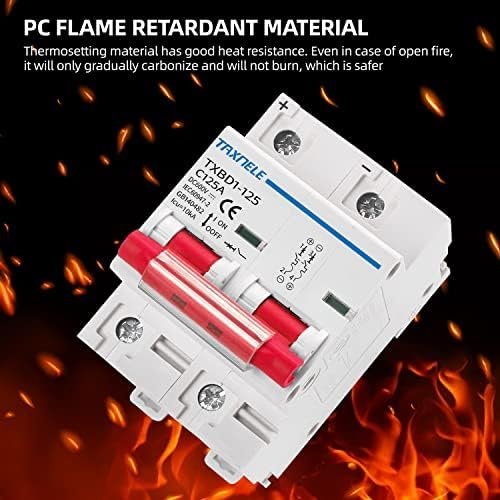

PC FLAME RETARDANT MATERIAL

long service life, high performance and light weight

Functions: The circuit breaker can protect power distribution facilities against overload and short circuit damage, and can also be used for control and isolation.
Strong Arc Extinguishing Capability: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
Electromagnetic trigger system: The electromagnetic trigger system can trigger immediately when the circuit is short-circuited, thus protecting the safety of the circuit, very reliable
Applications: This DC circuit breaker is used in DC power system, ship power system, solar photovoltaic system or other DC system, it has excellent performance
DIN Rail Installation: This DC switch comes with modular structure, adopts screw clamps with 35mm DIN rail installation
