AnyTone AT-778UVII Transceiver Mobile Radio Dual Band 25W VHF/UHF VOX Vehicle

Product description

AnyTone AT-778UV II Dual Band Transceiver Mobile Radio

Upgrade AT-778UV Mobile Transceiver Radio with VOX Function. Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable.This mobile Transceiver especially designs for drivers and it pursues philosophy of innovation and practicality.

FUNCTIONS & FEATURES

CHIRP SUPPORT !!! FREE download the programming software on AnyTone Officail Website.

Dual Band/Dual Watch; Color LCD Display; Wide/Narrow Band; CTCSS/DCS/DTMF/2TONE/5TONE; ANI Function/PTT ID; AOP/APO Functions; Keypad Lock Function; Remote Kill/Remote Waken;

SPECIFICATIONS

GENERAL

Frequency Range: VHF/UHF

Number of Channels: 200 channels

Operating Voltage: 13.8V DC ±15%

Frequency Stability: ±2.5 ppm

Operating Temperature: -20℃~+60℃

VOX Function; 180 degree rotatable TFT LCD display; DTMF-ANI or 5Tone-ANI for automatical calling recognition; Built-in speaker in both Radio & Microphone Single Call, Group Call, Selective Call and Emergency Call are all available;

RECEIVER

Sensitivity(12dB Sinad): ≤0.25μV; ≤0.35μV

Adjacent Channel Selectivity: ≥60dB

Audio Response: +1~-3dB (0.3~3KHz); +1~-3dB (0.3~2.55KHz)

Hum & Noise: ≥45dB; ≥40dB

Audio Distortion: ≤5%

Audio Power Output: >2W@8

TRANSMITTER

Power Output: 25W/15W/5W (Wide/Narrow Band)

Adjacent Channel Power: ≥70dB ;≥60dB

Hum & Noise: ≥40dB; ≥36dB

Spurious Emission: ≥60dB

Audio Response: +1~-3dB (0.3~3KHz); +1~-3dB (0.3~2.55KHz

Audio Distortion: ≤5%

RADIO BASIC OPERATION

Front Panel

(Number 1) Power On/ Off/ Mute(Number 2-7) Self Define Key(Number 8) Function Key/ Function Group Key(Number 9) Microphone Jack(Number 10) Channel Switch/ Push Button/ Key Lock(Number 11) LCD Display

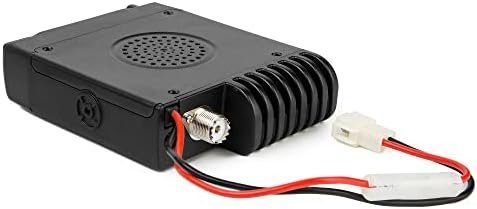

Rear Panel

(Number 1) Antenna Connector(Number 2) Ex-Speaker Jack(Number 3) Power Cable

Microphone Front

(Number 1) TX/RX Indicator: Light green while receiving; Light red while transmitting;(Number 2) A/B Band: Choose left band or right band as main band;(Number 3) MIC: Speak here during transmission;(Number 4) Number Key: Input VFO frequency or DTMF dial out etc;(Number 5) Band Indicator: The indicator light on for main band;(Number 6) Speaker: when shut the speaker in the base, you can hear the calling by this speaker;

Product Dimensions ‏ : ‎ 6 x 5 x 2 inches; 2.69 Pounds
Item model number ‏ : ‎ AT 778UV
Date First Available ‏ : ‎ June 28, 2019
Manufacturer ‏ : ‎ Qixiang Electron Science & Technology Co., Ltd
STOK CODE ‏ : ‎ B07TMY31QM

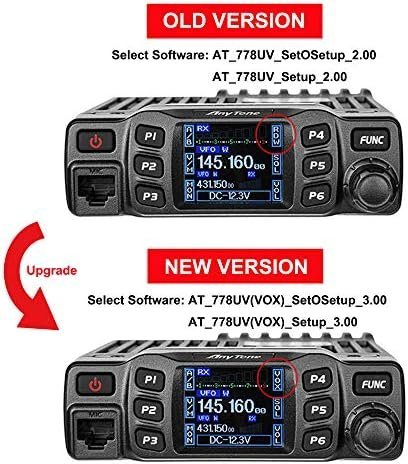

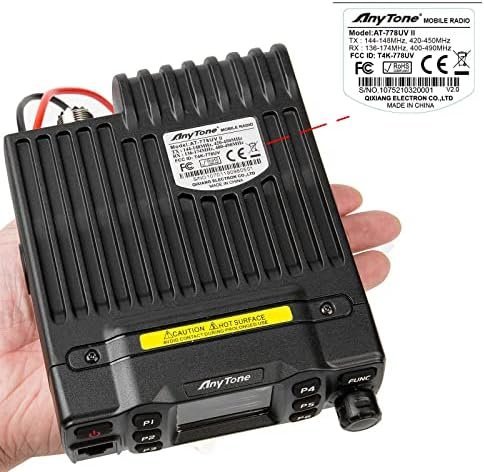

1.Upgrade AT-778UV Mobile Transceiver Radio, VOX Function, Two Mode for different operation requirement Distribute buttons reasonably, Convenient for operation. RX Frequency: 144-148MHz/420-450MHz, complies with Part 15B and Part 97 of FCC rule, FCC ID is T4K-778UV. Please operate radio in the range of FCC rules.

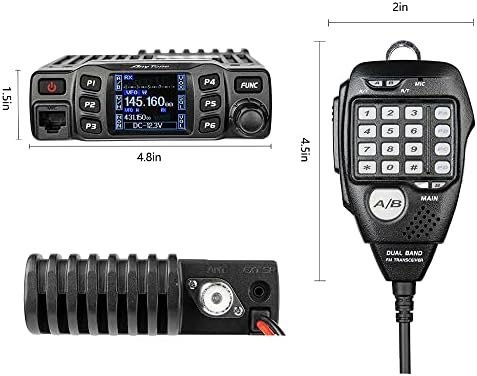

2.Mic Gain for sounds worlds better: The higher the mic gain will get louder sound, the more noise. If you want more clarity, you need to set level.Size: 4.9 inch (W) x 6.4inch (D) x 1.5inch (H) (124 x 163 x 39 mm); , Output Power 25W/15W/5W, 200 Channels Store, CTCSS/DCS, DTMF, 5Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken
3.180 degree rotatable TFT LCD display, Narrow band compliant, Built-in speakers in radio & microphone.CHIRP SUPPORT !!! FREE download the programming software on AnyTone Officail Website. It can be set manually or by software.
4.Single call, Group call, Selective call and Emergency call are all available, Keypad lockout function, Squelch level setting, LCD brightless control, Voltage level protection, Automatic power function.

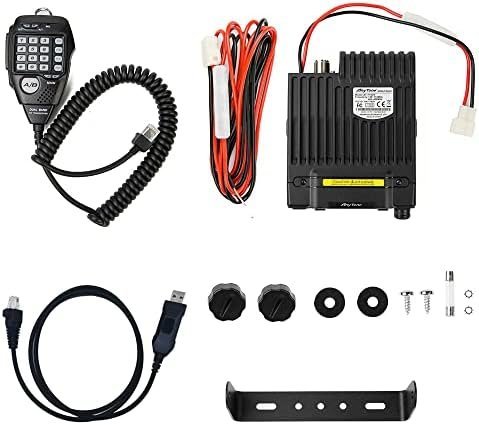

5.Kit Includes: AnyTone AT-778UV Mobile Transceiver, Microphone, Power Cabe with Fuse Holder, Mounting Brackets & Screws, Cable, User’s Manual. U.S Based Warranty, Warehouse (Domestic Return)–No Further Return Issue.
