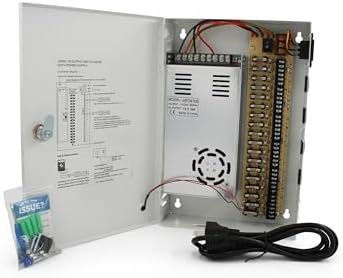

18 Port Channel 12V 2A CCTV Power Supply Box AC-DC Distributed Cabinet

Product description

WIDE RANGE OF APPLICATIONS

As a Power Supply for LED

LED-Light bar;LED-Lamp;LED-Light sign;LED-Outdoor lights;Street Lamp;…

As a Power Source for Electronic Devices

Host Room ；Server Room;Research Room ；Scientific Research Area ；Medical Research Area ；Laboratory;Automation Control Room;Teaching and Training Center ；…

As a Power Supply for Displays, CCTV and Surveillance

CCTV；Displays;Multi-Screen Displays;Security Camera;Monitoring Room ；…

FUNCTION

High quality EMI filter inductor made of copper, transparent cover

High quality EMI filter inductor made of copper:

Low loss, high efficiency, good heat dissipation, stability.

Transparent cover:

Dustproof;

Prevent accidental touch

New high quality Chips, Aluminum electrolytic capacitor

Imported high quality Chips:

Overload / Overvoltage / Overcurrent / Short circuit protection

High Capacity Aluminum Electrolytic Capacitors:

Large Capacity, Moderate Dielectric Strength, High ESR, Polarity.

Positive und Negative müssen richtig verbunden werden.

PACKAGE INCLUDES:

1x Power Supply Box (Built-in Switch Mode Power Supply )1x White paper box2x Key Lock4 sets of Expansion Screws

Operating instructions or other:

Download in “Product Documentation”.

FUNCTION:

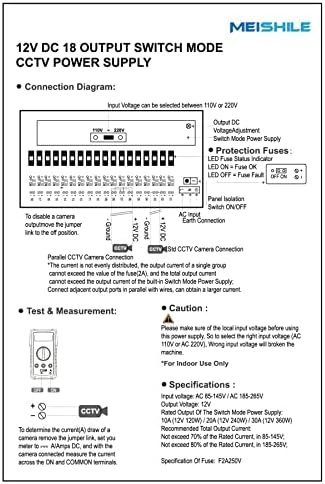

It offers a more professional alternative to individual power adapters; Support up 18 cameras; Individual LED power indication, the red light shorts indicator helps you know which is not working; Main power switch with integral surge protection; Individual PTC reset-able fuses output protection; Separate spaces for low voltage and high voltage operation to protect from high voltage damages Metal covered case with lock; Have 4 hanging holes for easy wall hanging;

Overload: ＞ 105% pause outputOvervoltage: ＞ 115% pause outputOvercurrent: ＞ 105% pause outputShort-circuit protection: When the output terminal is short-circuited, pause outputNot waterproofWithout Power Cord .Professional installation by a licensed electrician is highly recommended!

SPECIFICATION

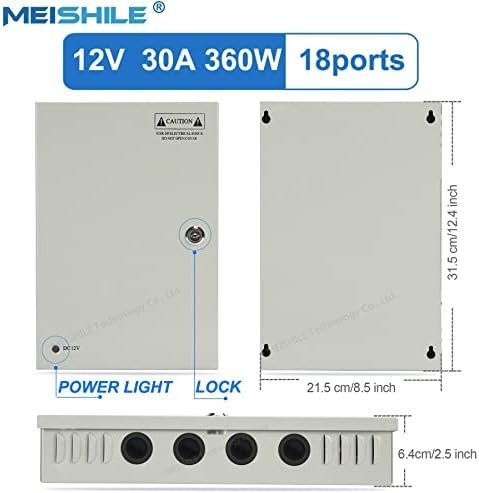

Weight: 75.8 oz / 2.15 kg; Size (L x W x H): 12.4 x 8.46 x 2.5 inch / 31.5 x 21.5 x 6.4cm ;

AC Input voltage: 110V (85-145V) Alternating Current DC Output voltage: 12V Direct Current Output port: 18 channelPort output current: 1.6 Amp/channel maximumWorking Temperature: -10 ~ + 60 ℃; Humidity: 20 ~ 90% RH (Refer to the output load derating curve) Storage Temperature: -20 ~ + 85 ℃ ; Humidity: 10 ~ 95% RHTemperature Coefficient ± 0.03% / ℃ (0 ～ 50 ℃)Start, Rise, Hold Time: 200ms, 50ms, 20msVibration Resistance: 10~500Hz, 2G 10min, / 1 cycle, duration 60 minutes, each axisPressure Resistance: 1.5 KvAC input and housing; 1.5 KvAC output and housing; 0.5 KvAC

Power Supply : Frequency range: 60 Hz Efficiency: ＞ 85% Leakage current: <0.5 mA / 230 VAC Difference range: ± 1% Rated Power: 360 watt Output current: 30A maximum. Adjustable output voltage range: ± 5% (11.4~12.6V)

The maximum usage power don’t exceed 80% of the full load, otherwise the service life will be greatly shortenedIf it runs 24 * 7 hours, the power consumed should not exceed 40% of the full loadNot suitable for Speed-Regulating Motors / Charging Batteries

Rated Power:
120W no data
240W 360W no data
1200W

Recommended maximum ​usage ​power :
84W 12V 1A 9port no data
250W 12V 1.5A 18port 840W

MEISHILE Technology

The company was founded in 2016. We are dedicated to manufacturing and selling Transformers, Switching Power Supplies, Industrial Power Supplies, Monitoring Power Supplies, Motor Power Supplies, LED Powertrains, LED Strips, Industrial Lamps, Household Lamps, and more.

We insist on using brand new high quality raw materials, reasonable prices to bring you professional, durable and low cost products and a pleasant shopping process.

The products are widely used in various construction projects and construction projects in Asia, Europe, America and Australia.

Max. output 30 Amp total. Maxim for each port is 1.6Amp ,18 port design allows the power to support several cameras simultaneously
LONG LASTING RESET-ABLE FUSE: Each output has individual Fuse/LED-indicator, 2A Fuse, easy to replace, Long lasting
MULTIPLE USES: can be used to power DC 12V devices, including CCTV security equipment, Cameras, DVRs, Mics, and Lighting equipment
Fan Cooling, New Metal Materials, Compression, Wear-resisting Reinforcement Enclosure Structure, Transparent cover, Used more safely and conveniently than other thanks to its sealed design. Indoor Use

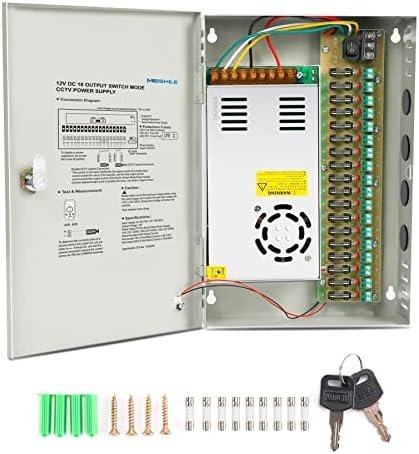

PACKAGE INCLUDES: 18 Channel 12V DC Power box, Key, Lock, 2A Fuses, Rubber Seal, Installation Accessories Did not include power cable
